15.4Inch Auo Car LCD Display model C154UAT01.0 1920*1200Pixels 6pin automotive display

Brand Name : AUO

Model Number : C154UAT01.0

Certification : Rohs,CE,FCC

Place of Origin : China

MOQ : 10pcs

Price : $56

Payment Terms : T/T,W, Western Union, MoneyGram

Supply Ability : 2000pcs per week

Delivery Time : 4-5 working day

Packaging Details : Industrial packing

Quality : Brand new Original

Package : Original industrial packing

resolution : 1920*1200pixels

style : LCD 6PIN

brightness : 800CCD M2

color : 16.7M

contrast ratio : 1200 :1

working life : 30K Hours

touch panel : embeded touch

Contact Now

15.4Inch Auo Car LCD Display model C154UAT01.0 1920*1200Pixels 6pin automotive display

AU Optronics Corp. (hereafter called AUO) C154UAT01.0 is a 15.4 inch diagonal a-Si TFT-LCD display panel product, with an integral WLED backlight system, touchscreen Embeded Touch. It features an operating temperature range of -40 ~ 85°C , a storage temperature range of -40 ~ 90°C . It's general features are summarized by einklcd in the following: DCI-P3, sRGB, Wide Temperature, Hight Brightness, WLED Backlight, Matte , C154UAM01.0 (Set project) is composed of a TFT-LCD (C154UAT01.0). Based on its features, einklcd recommend that this model be applied to Outdoor High Brightness, Automotive Display etc. According to the information stored in einklcd this model mass production on Q2, 2019, Now this model is in production. We inputted this model's specification on Nov 9 2022 for the first time, and the latest update on Mar 24 2025. If you want to embed C154UAT01.0 Assembly in your future product, einklcd strongly recommend that you should contact with AUO or it's distributor to learn lateast production and specification detail. The C154UAT01.0 production status marked on einklcd.com is for reference only and should not be used as the basis for the user's decision making.

Brand: AUO
Model P/N: C154UAT01.0

Diagonal Size: 15.4"
Panel Type: a-Si TFT-LCD, Assembly

Resolution: 1920(RGB)×1200, WUXGA 147PPI
Pixel Format: RGB Vertical Stripe

Active Area: 330.624(W)×206.64(H) mm
Bezel Opening: -

Outline Dim.: 355.46(H)×232.02(V) ×17.7(D) mm
Treatment: Anti Fingerprint + Antiglare, Reflection 3.0% (Max.)

Luminance: 800 cd/m² (Typ.)
Contrast Ratio: 1200:1 (Min.) (TM)

View Direction: Symmetry
Response Time: 20 (Typ.)(Tr+Td)

Viewing Angle: 80/80/80/80 (Typ.)(CR≥10)
Operating Mode: AHVA, Normally Black, Transmissive

Support Color: 16.7M 90% DCI-P3
Light Source: WLED

Weight: 1.30±0.13Kgs
Designed For

Frame Rate: 60Hz
Touch Panel: Embeded Touch

Interface Type: GMSL , 6 pins Connector

Environment: Operating Temperature: -40 ~ 85 °C ; Storage Temperature: -40 ~ 90 °C

Quality 15.4Inch Auo Car LCD Display model C154UAT01.0 1920*1200Pixels 6pin automotive display wholesale

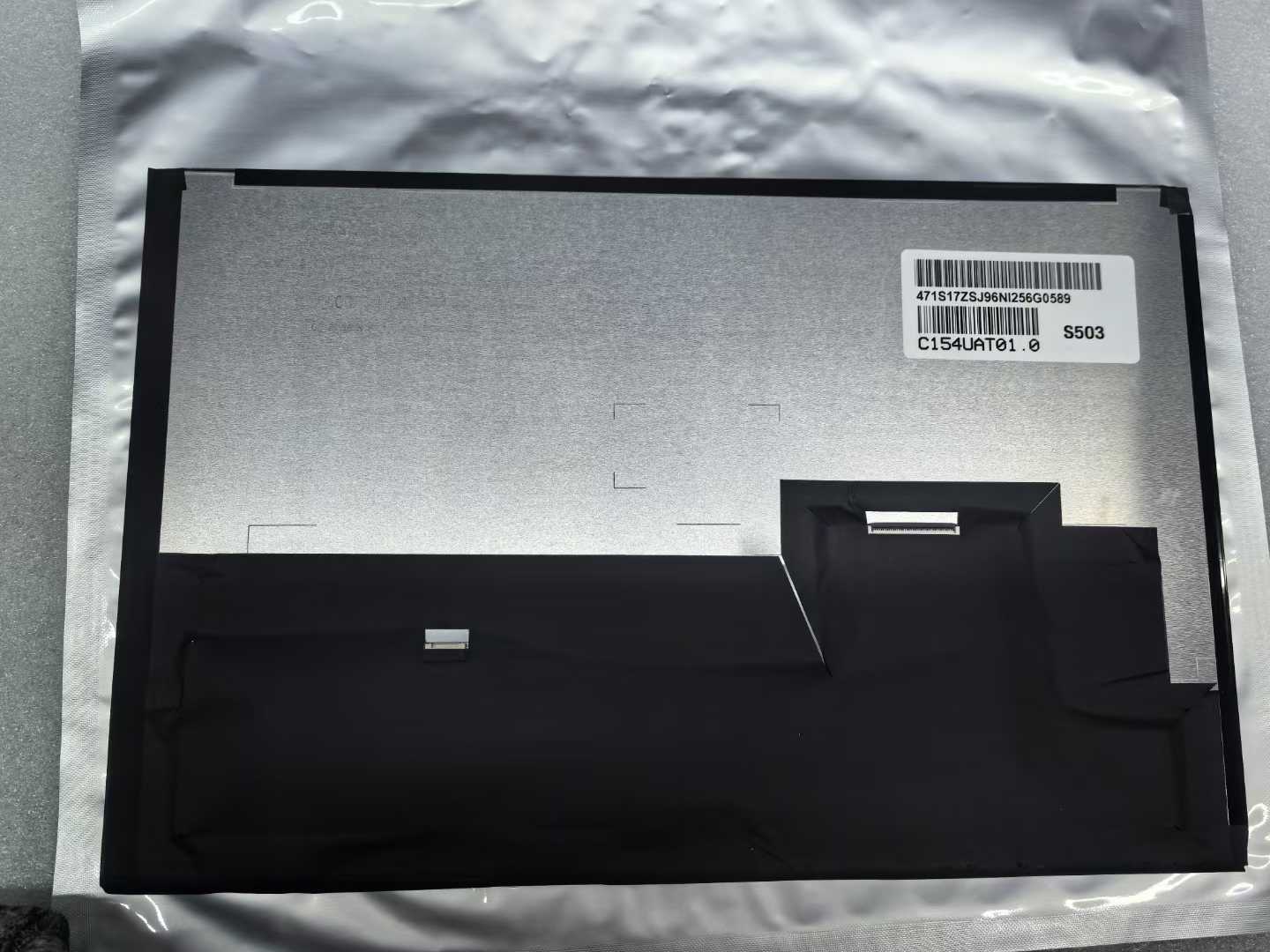

15.4Inch Auo Car LCD Display model C154UAT01.0 1920*1200Pixels 6pin automotive display Images
