BOE 15Inch Industrial Lcd Panel HM150X01-102 1024*768 350cd/M2 85PPI

BOE 15Inch Industrial Lcd Panel Medical imaging lcd display HM150X01-102 1024*768 350cd/M2 85PPI

BOE Technology Group Co., Ltd. (hereafter called BOE) HM150X01-102 is a 15.0 inch diagonal a-Si TFT-LCD display panel product, with an integral WLED backlight system, With LED Driver , without touch screen. It features an operating temperature range of -20 ~ 70°C , a storage temperature range of -30 ~ 80°C , and the maximal vibration level of 1.5G (14.7 m/s²). It's general features are summarized by einklcd in the following: Lamp Repaceable, WLED Backlight, Life ≥ 50K hours, With LED Driver, Upside I/F, 180° Reverse, 6/8 bit, Matte . Based on its features, einklcd recommend that this model be applied to Industrial, Medical Imaging etc. According to the information stored in einklcd this model mass production on Q1, 2016, Now this model is discontinued. We inputted this model's specification on Jan 27 2016 for the first time, and the latest update on Aug 9 2021. If you want to embed HM150X01-102 LCM in your future product, einklcd strongly recommend that you should contact with BOE or it's distributor to learn lateast production and specification detail. The HM150X01-102 production status marked on einklcd.com is for reference only and should not be used as the basis for the user's decision making. All specification details are inputted by einklcd engineers according to datasheet, but we cannot guarantee the spec listed is right.

Manufacturer

BOE

Model Name

HM150X01-102

Screen Size

15.0 inch

Screen Type

LCM, a-Si TFT-LCD

Pixel Number

1024(RGB)×768 (XGA) 85PPI

Arrangement

RGB Vertical Stripe

Active Area(mm)

304.128 × 228.096 (H×V)

Outline(mm)

326.5 × 253.5 × 11.9 (H×V×D)

Bezel Area(mm)

307.4 × 231.3 (H×V)

Treatment

Antiglare (Haze 25%), Hard coating (3H)

Luminance

350 cd/m² (Typ.)

Contrast Ratio

700 : 1 (Typ.) (TM)

Viewing Angle

80/80/80/80 (Typ.)(CR≥10)

Response

8 (Typ.)(Tr+Td) ms

Good View at

-

Work Mode

TN, Normally White, Transmissive

Color Depth

262K/16.2M 60% NTSC

Backlight

9S3P WLED , 50K hours , With LED Driver

Mass

1.04Kgs (Typ.)

Used for

Refresh Rate

60Hz

Touchscreen

Without

Signal Type

LVDS (1 ch, 6/8-bit) , Connector 20 pins

Voltage Supply

3.3V (Typ.)

Max. Ratings

Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C

85PPI Medical Imaging Lcd Display

350cd/M2 industrial flat panel display

HM150X01-102 Industrial Lcd Panel

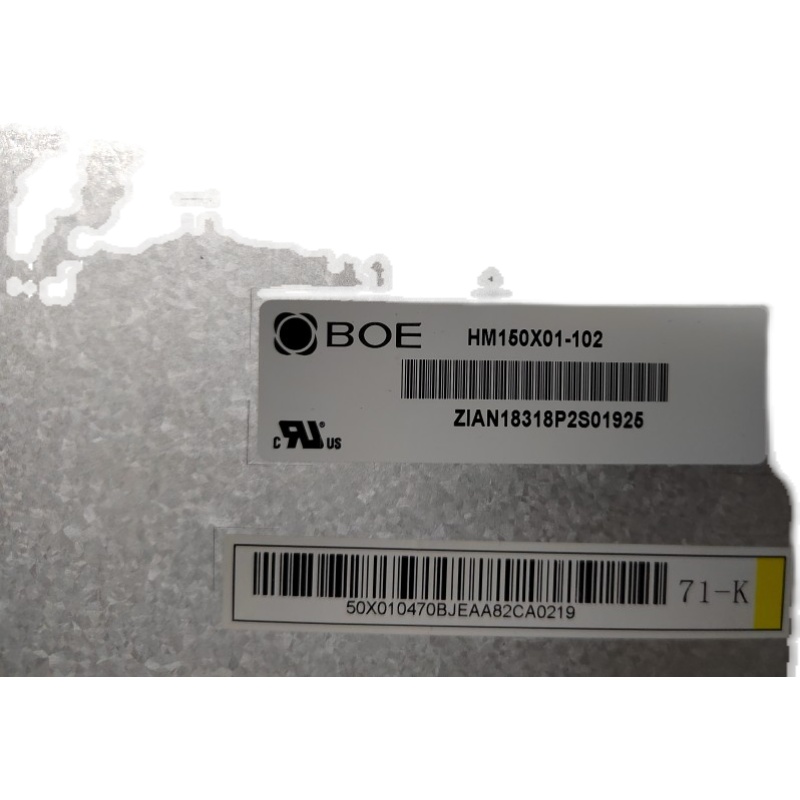

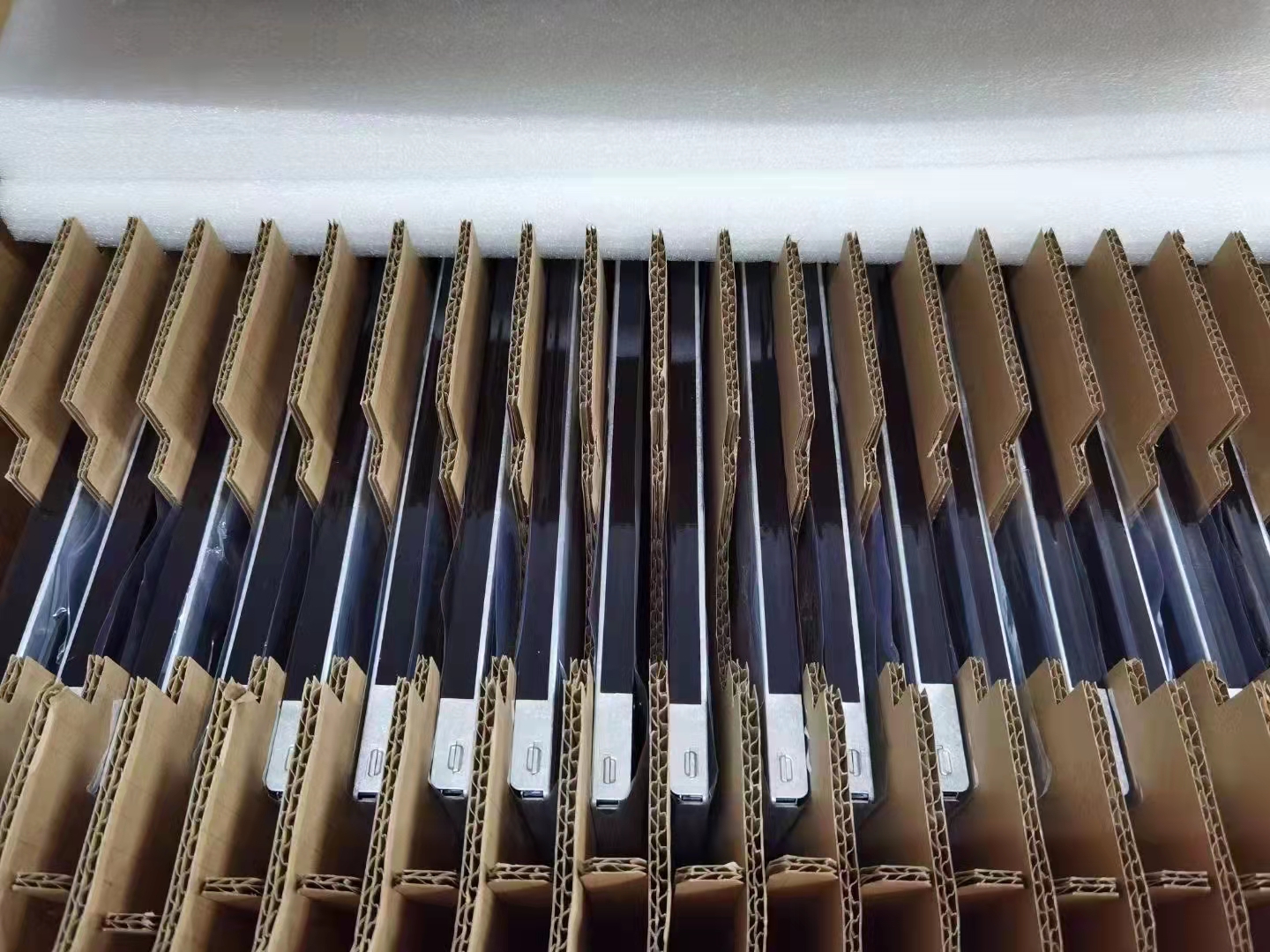

BOE 15Inch Industrial Lcd Panel HM150X01-102 1024*768 350cd/M2 85PPI Images
